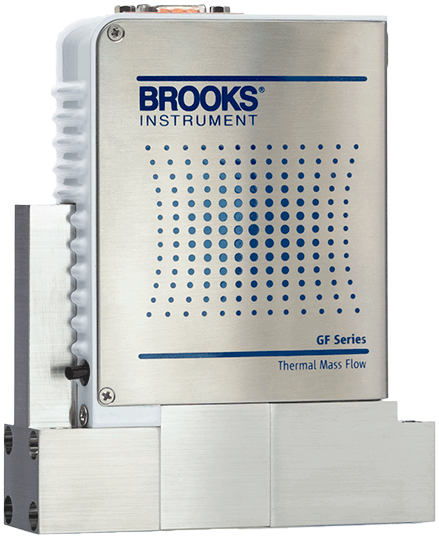

GF135 Series Real-Time Flow Error Detection Metal Sealed Thermal Mass Flow Controllers

Performance and intelligence.
Models GF135

Keep critical flow processes on-target and maximize throughput with the GF135 Advanced Diagnostics Pressure Transient Insensitive (PTI) mass flow controller. The world’s first “smart” mass flow controller is a true game changer: It performs integral rate-of-decay flow measurement without stopping the flow of process gas. It allows semiconductor manufacturers to verify process gas accuracy, check valve leak-by and monitor sensor stability in real time without removing the flow controller from the gas line.

Combined with an all-metal wetted flow path, ultra-fast settling times and industry-leading process gas accuracy, the GF135 PTI MFC has the potential to transform the productivity and throughput rates for a wide range of deposition processes.

Questions?

Talk to one of our application engineering experts by calling: 1-888-554-3569


For pricing information:

Request a Quote

Features

  • Long-term zero stability of <±0.5% full scale per year
  • Ultra-fast settling times: <300 ms - <400 ms
  • Full-scale flow rates: 3 sccm to 5 slm
  • Ultra-high purity flow path - 4µ inch Ra surface finish
  • Embedded real-time flow error detection and trending using Rate of Decay (ROD) techniques
  • Enhanced process gas accuracy - up to three times improvement - through advanced gas modeling optimized through actual gas testing
  • Third generation pressure transient insensitivity (PTI) technology
  • High visibility, electronically rotatable LCD display provides local indication of flow, temperature, pressure and network address
  • DeviceNet™, RS-485 and analog interfaces

Benefits

  • Real-time flow error detection enables faster adjustments to flow deviations and supports wafer yield improvement
  • Sensor stability tracking improves system uptime by supporting predictive maintenance
  • Valve leak-by tracking helps minimize first wafer effects
  • Enhanced process gas accuracy meets process gas chemistry control challenges at 10 nm
  • Market leading flow settling time reduces non-productive flow stabilization steps, supporting advanced 3D device processing
  • Enhance pressure insensitivity delivers superior process gas control for enhanced etch and deposition control
  • Corrosion-resistant Hastelloy® sensor provides unmatched long-term sensor stability ensuring maximum yield and throughput
  • Drop-in replacement for surface-mount and VCR MFCs is an easy upgrade for critical gas lines on existing systems

Applications

  • Semiconductor advanced etch tools
{F9EC0C1C-EF15-43AC-AC66-4ED4A71D7514}
Product Type
Mass Flow Controller
{251FCFC3-ED43-45FB-B99E-14E538E9CEC7}
Differentiator

Real-Time Flow Error Detection

Advanced Diagnostics

{C3F03871-3E8E-4073-B135-51576DFF3CD1}
Performance
{96A989C2-CB51-40C5-B8E6-61AB78682E85}
Flow Range (Full Scale Capacity)

3 sccm - 5 slm (N2 Eq.)

{B8FF754C-E9D1-4A60-8DBE-ED05C9DF1E96}
Pressure Transient Insensitivity

< 1% S.P. for up to 5 psi/sec upstream press. spike

{E45004D8-F791-4552-AF20-5D478F53E269}
Accuracy

±1% S.P. 10-100% F.S.

±1% S.P. plus ±0.04% F.S. 2-10% F.S.

{6A37A5DA-195F-4B24-B6C4-0205D9D5B16A}
Repeatability
< ±0.15% S.P.
{200B6F0E-0093-40B6-8659-9DACB6D93EDB}
Linearity

Included in accuracy

{94FD9290-4728-4403-A733-0FB2FD8575E6}
Response Time

<300 ms (<860 sccm N2 equivalent)

<400 ms (861-5000 sccm N2 equivalent)

(to within ±2% FS)

<300 ms (<860 sccm N2 equivalent)

<400 ms (861-5000 sccm N2 equivalent)

(to within ±2% FS)

<300 ms (<860 sccm N2 equivalent)

<400 ms (861-5000 sccm N2 equivalent)

(to within ±2% FS)
{FB99095C-3AB1-4E1F-AE4F-260AB978ED0F}
Multi-Gas & Range Configurability

—

{3CAF093E-D5B7-4065-B8EE-B7DC8FEB03A7}
Control Range

1 - 100%

{3F75BC1C-5A63-4D09-8997-C0A9AAC354E2}
Valve Shut Down

< 0.5% of F.S. N2

{3625EA46-49DD-483A-8DAD-79A6D0F3D404}
Zero Stability
< ±0.5% F.S. per year
{771584F5-2BEE-4EFB-85E1-3797D05C9A0B}
Flow Temperature Coefficient

Span: 0.05% S.P./°C

Zero: 0.005% F.S./°C

{B560236C-A2C8-4FFE-BF4F-B5A5CEE1353F}
Mechanical
{9A9D74B0-1835-41F7-BFA9-B034167CE9F6}
Seal Material

Metal

{E91DD936-793A-4CDA-A5FF-13C10D882EBA}
Level of Purity / Surface Finish
4µ inch Ra
{A9AA5827-A448-473E-B30A-36C416B8F6C6}
Wetted Materials

SEMI F20 HP Compliant

316L VIM/VAR

Hastelloy C-22

316L Stainless Steel

304 Stainless Steel

KM-45

{AE4C8AD1-031E-4A0E-8A08-FD78F2E61105}
Valve Options

Normally Closed

{B6F78E51-45E1-4A71-A471-89BC03986E67}
Ratings
{6114C478-893F-4C41-B28E-9471C59C7CD0}
Max Temperature

50oC

{A83DE50E-FC1B-4612-9D15-9DB53E771092}
Differential Pressure Range

3-860 sccm = 7-45 psid

861 - 5000 sccm = 10-45 psid

*Typical pressure drops. Contacts Brooks Technical Support for more information.

{0A0ED4EA-DE5A-489C-9CE7-D507B74B5729}
Max Pressure

100 psia max

{E4EE992F-AD12-4619-A877-D4CF31E11C97}
Leak Integrity
1x10-10 atm cc/sec He
{2092D589-0209-4080-B881-37807641DC41}
Diagnostics & Display
{C5BAAB04-7615-44D4-9CA3-BAB98FC3D1E0}
Diagnostic Capability
Available

{0343AFA8-E123-4173-ACCD-D82A2CAC6F0D}
Status Lights

MFC Health

Network Status

{C8AC2846-09FA-4FBC-80C6-DA99E1C61811}
Alarms

Sensor Output, Control Valve Output, Over Temperature, Power Surge/Sag, Network Interruption, Sensor Drift, Flow Error, Valve Leak

{2428D45F-43A3-41F4-B34B-B8CB1B7F7487}
Diagnostic / Service Port

RS485 via 2.5mm jack

{E0C3F8A9-481A-4D8B-B051-72899CBCF019}
Display

Top Mount Electronically Rotatable Integrated LCD

Viewing Angle: Fixed

Viewing Distance: 10 feet

Units Displayed: Flow (%), Temp (°C), Pressure (psia, kPa)

Resolution: 0.1 (unit)

{A5F5976D-4227-431A-A7CF-FF895608E281}
Electrical
{2F078655-D179-40AF-8828-43C1F8CAA487}
Analog Communication

0-5 Vdc

{FA5D13D9-D420-4A80-B85A-5941FC0CB668}
Digital Communication

DeviceNet™

RS485

{AEC1E79F-E392-416A-9590-D92242E894BC}
Electrical Connection

Analog/RS485 via 9-Pin "D" connector

DeviceNet™ via 5-Pin "M12" connector

{90514066-8814-4707-B962-0C7A1FE3D305}
Power Supply / Consumption

Analog/RS485: 6 Watts max @ ±15 Vdc (±10%) or +24 Vdc (±10%)

DeviceNet™: 545 mA max @ +11-25 Vdc, 250 mA max @ 24 Vdc

(Under typical operating conditions)

{F6AD4E04-D0AC-44C6-8F8A-22F65EB2CE98}
Compliance
{555577C1-8E66-4AB1-AA9D-147886E0E15A}
EMC

EC Directive 2004/108/EC

CE: EN61326-1: 2006 (FCC Part 15 & Canada IC-subset of CE testing)

{CB921446-4704-4849-98E9-71EC3F90B1D8}
Environmental Compliance

RoHS Directive (2011/65/2006)

REACH Directive EC 1907/2006

GF135
Flow Range (Full Scale Capacity) 3 sccm - 5 slm (N2 Eq.)
Response Time

<300 ms (<860 sccm N2 equivalent)

<400 ms (861-5000 sccm N2 equivalent)

(to within ±2% FS)
Gases Supported

Ar, BCl3, C4F6-q (@ 800 Torr), C4F8 (@ 1200 Torr), C5F8, CF4, CH2F2, CH3F, CHF3, Cl2, CO2,

H2, HBr, He, N2, N2O, NF3, NH3, O2, SF6, SiCl4 (@ 100 Torr), SiH2Cl2, SiH4, SiHCl3

Rate-of-Decay Performance ROD by default is disabled/off. It should not be enabled until after the MFC is installed and properly commissioned.
Surface Finish 4µ inch Ra
Filename File Type Documents By Language
Installation & Operation Manual pdf English
DeviceNet™ Supplemental Manual pdf English
RS485 L-Protocol Supplemental Manual pdf English
GF135 Series Software
GF135 Series Software
Commissioning software that provides users with a simple means to create a performance baseline during initial installation of the MFC.
